Using munch with ggplot2

Source: vignettes/ggplot2-theming.Rmd
ggplot2-theming.Rmd
library(munch)
library(ggplot2)
library(flextable)
library(gdtools)
font_set_liberation()
#> Font set
#>   sans:    Liberation Sans [liberation]
#>   serif:   Liberation Serif [liberation]
#>   mono:    Liberation Mono [liberation]
#>   symbol:  Liberation Sans [liberation]
#>   4 HTML dependencies
set_theme(theme_minimal(base_family = "Liberation Sans", base_size = 11))

This vignette covers formatting in ‘ggplot2’ theme elements and text annotations using ‘munch’.

Simple markdown with element_md()

element_md() replaces element_text() to render markdown in titles, subtitles, captions, and axis labels.

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  labs(
    title = "**Fuel Consumption** vs *Weight*",
    subtitle = "Data from the `mtcars` dataset",
    caption = "Source: *Motor Trend* (1974)"
  ) +
  theme(
    plot.title = element_md(size = 16),
    plot.subtitle = element_md(size = 12),
    plot.caption = element_md(size = 9)
  )

ggplot(mtcars, aes(hp, mpg)) +
  geom_point() +
  labs(
    x = "Horsepower (*hp*)",
    y = "Miles per gallon (**mpg**)"
  ) +
  theme(
    axis.title.x = element_md(),
    axis.title.y = element_md()
  )

For advanced markdown rendering (images, spans, custom CSS), see also marquee::element_marquee().

Advanced formatting with element_chunks()

element_chunks() uses ‘flextable’ formatting functions (as_paragraph(), as_chunk(), etc.) to build rich text with superscripts, subscripts, colors, and highlighting, features that markdown does not support.

The as_paragraph() vocabulary

Build text by combining chunks inside as_paragraph():

Function Description Example
as_chunk() Plain text as_chunk("text")
as_b() Bold as_b("bold")
as_i() Italic as_i("italic")
as_sup() Superscript as_sup("2")
as_sub() Subscript as_sub("2")
colorize() Colored text colorize(as_chunk("red"), color = "red")
as_highlight() Highlighted as_highlight(as_chunk("text"), color = "yellow")
chunks <- as_paragraph(
  as_b("Bold"), as_chunk(", "),
  as_i("italic"), as_chunk(", "),
  as_chunk("x"), as_sup("2"), as_chunk(", "),
  as_chunk("H"), as_sub("2"), as_chunk("O")
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  theme(plot.title = element_chunks(chunks))

Scientific notation

Superscripts and subscripts are essential for scientific text. element_chunks() makes them straightforward:

title_chunks <- as_paragraph(
  as_chunk("Analysis: "),
  as_b("R"), as_sup("2"),
  as_chunk(" = 0.87, "),
  as_i("p"), as_chunk(" < 0.001")
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE) +
  theme(plot.title = element_chunks(title_chunks))

Chemical formulas:

subtitle_chunks <- as_paragraph(
  as_chunk("Concentration of "),
  as_b("H"), as_sub("2"),
  as_b("SO"), as_sub("4"),
  as_chunk(" in solution")
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  theme(plot.subtitle = element_chunks(subtitle_chunks))

Units with exponents:

caption_chunks <- as_paragraph(
  as_chunk("Units: mol\u00B7L"), as_sup("-1"),
  as_chunk(" | Speed: m\u00B7s"), as_sup("-2")
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  theme(plot.caption = element_chunks(caption_chunks))

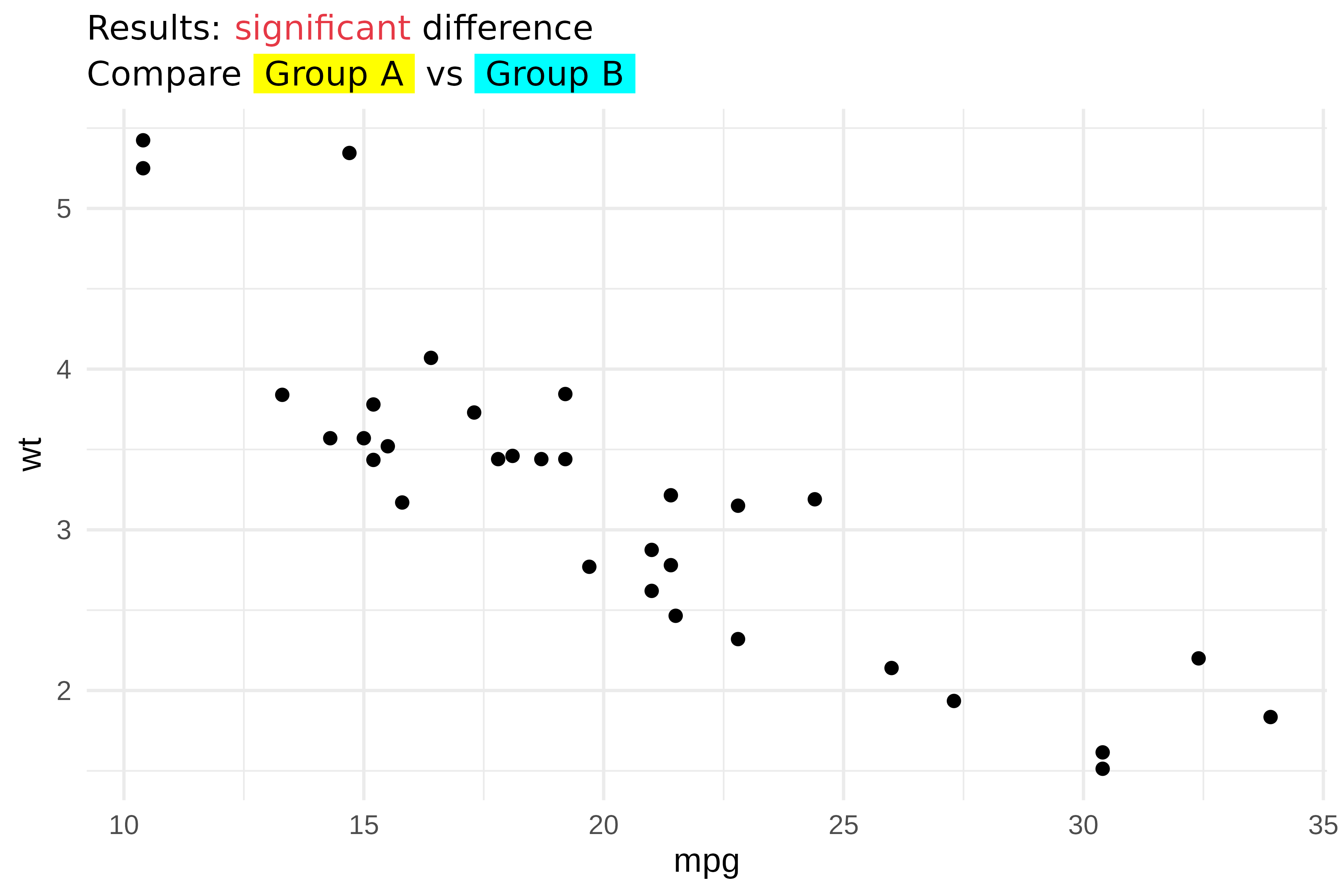

Colors and highlighting

colorize() and as_highlight() add color and background highlighting:

title_chunks <- as_paragraph(
  as_chunk("Results: "),
  colorize(as_chunk("significant"), color = "#E63946"),
  as_chunk(" difference")
)

subtitle_chunks <- as_paragraph(
  as_chunk("Compare "),
  as_highlight(as_chunk(" Group A "), color = "yellow"),
  as_chunk(" vs "),
  as_highlight(as_chunk(" Group B "), color = "cyan")
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  theme(
    plot.title = element_chunks(title_chunks),
    plot.subtitle = element_chunks(subtitle_chunks)
  )

Images in theme elements

as_image() embeds images inside element_chunks(). This is useful for logos or icons in titles:

r_logo <- file.path(R.home("doc"), "html", "logo.jpg")

title_chunks <- as_paragraph(
  as_image(src = r_logo, width = 0.25, height = 0.2),
  as_chunk(" "),
  as_b("R Project"),
  as_chunk(" - fuel consumption data")
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  theme(plot.title = element_chunks(title_chunks))

Layout parameters

element_chunks() accepts the same layout parameters as element_md():

Parameter Description
hjust Horizontal justification (0-1)
vjust Vertical justification (0-1)
angle Text rotation angle
lineheight Line height multiplier
margin Margins around text

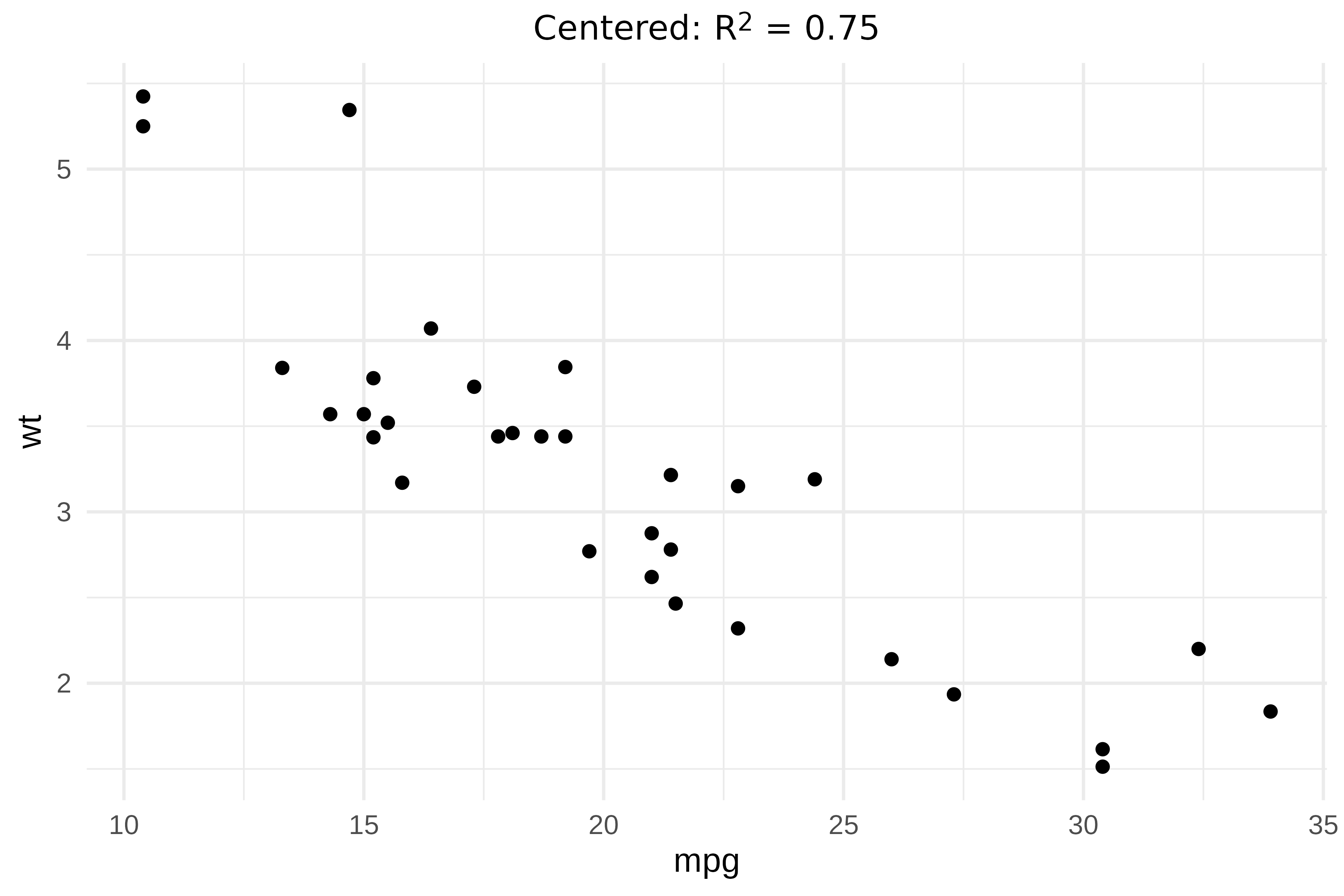

chunks <- as_paragraph(
  as_chunk("Centered: R"), as_sup("2"),
  as_chunk(" = 0.75")
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  theme(plot.title = element_chunks(chunks, hjust = 0.5))

Text annotations with geom_text_md() and geom_label_md()

geom_text_md() and geom_label_md() render markdown-formatted labels directly on the plot, similar to geom_text() and geom_label().

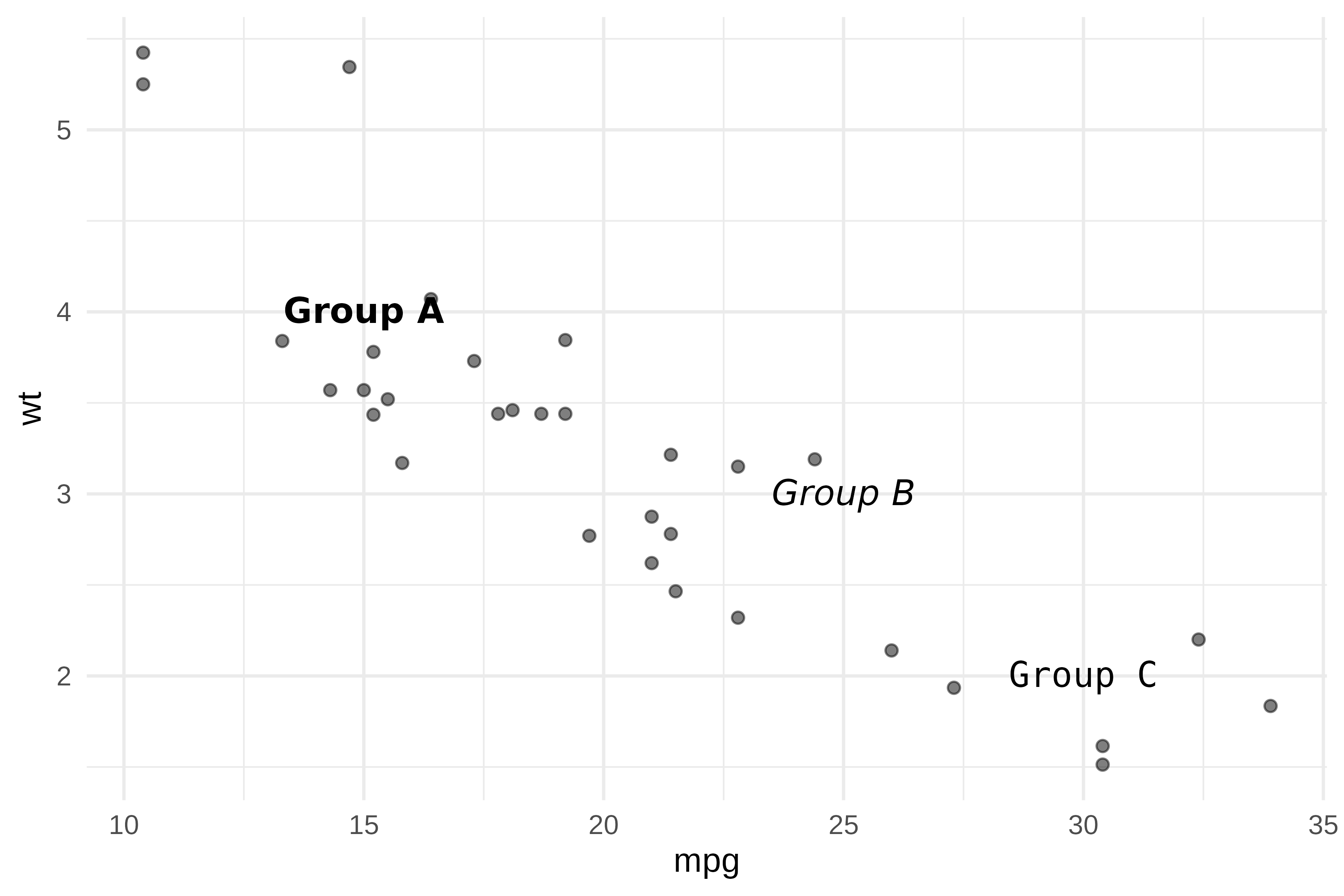

annotations <- data.frame(
  x = c(15, 25, 30),
  y = c(4, 3, 2),
  label = c("**Group A**", "*Group B*", "`Group C`")
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point(alpha = 0.5) +
  geom_text_md(
    data = annotations,
    aes(x = x, y = y, label = label),
    size = 4
  )

geom_label_md() adds a background rectangle for better readability:

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE) +
  geom_label_md(
    label = "**R\u00B2 = 0.75**\n\n*p < 0.001*",
    x = 28, y = 5,
    hjust = 0, vjust = 1,
    fill = "white",
    label.padding = unit(0.5, "lines")
  )

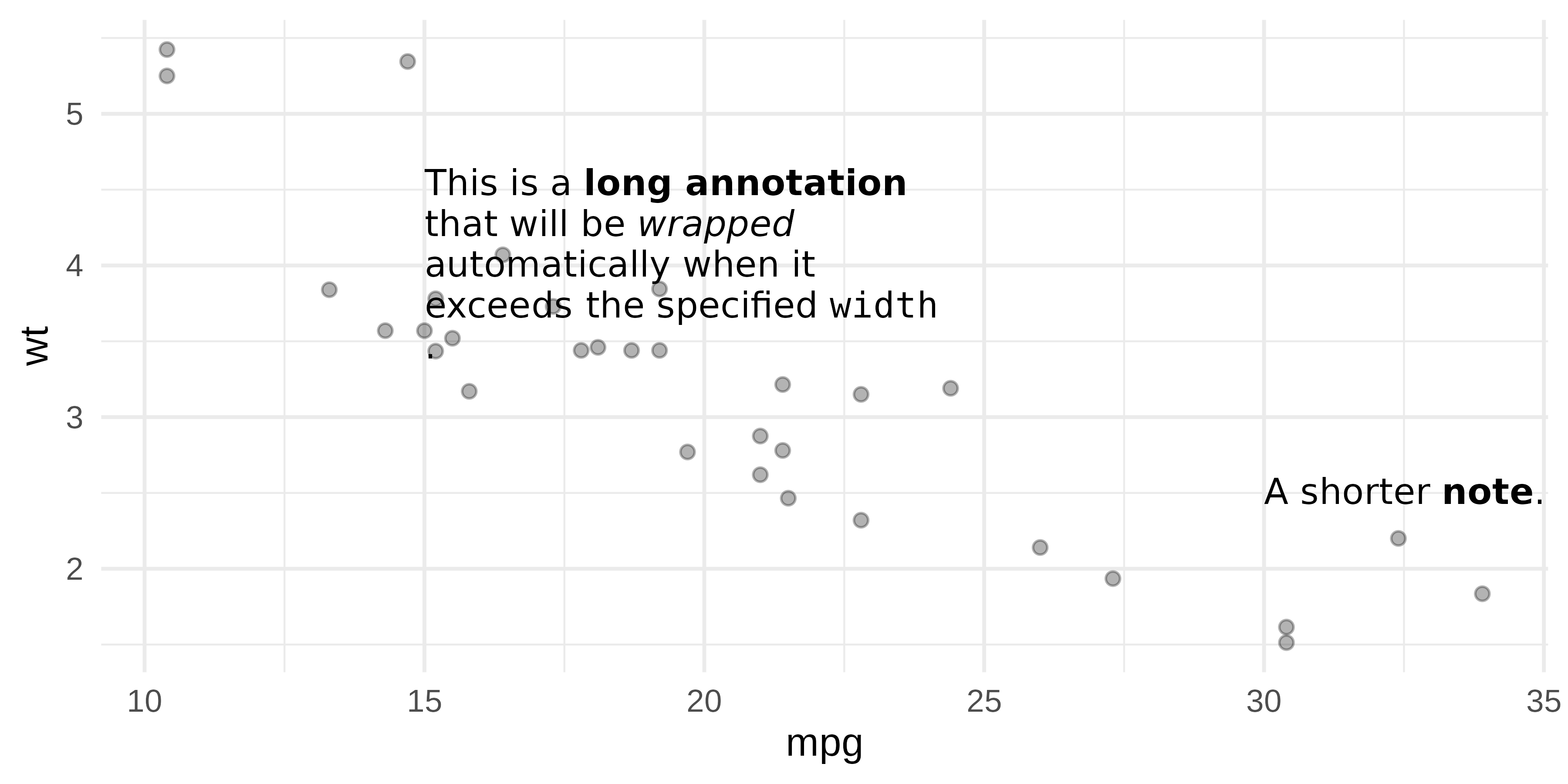

Text wrapping

geom_text_md() and geom_label_md() support the width parameter (in inches) for automatic line wrapping:

df <- data.frame(
  x = c(15, 30),
  y = c(4, 2.5),
  label = c(
    "This is a **long annotation** that will be *wrapped* automatically when it exceeds the specified `width`.",
    "A shorter **note**."
  )
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point(alpha = 0.3) +
  geom_text_md(
    data = df,
    aes(x = x, y = y, label = label),
    width = 2, hjust = 0, size = 3.5
  )

Images in labels

Use markdown image syntax ![](path) to embed images in geom_label_md():

r_logo <- file.path(R.home("doc"), "html", "logo.jpg")

df <- data.frame(
  x = 20, y = 4,
  label = sprintf("Built with ![](%s) and **ggplot2**", r_logo)
)

ggplot(mtcars, aes(mpg, wt)) +
  geom_point() +
  geom_label_md(
    data = df,
    aes(x = x, y = y, label = label),
    fill = "white",
    label.padding = unit(0.5, "lines")
  )

Alignment accuracy

‘munch’ splits text into individually-styled chunks and measures each chunk width separately using ‘gdtools’. The widths are then summed to obtain the total line width. This approach works well in most cases, but it does not produce the same result as a full text shaping engine such as textshaping or systemfonts. Those engines compute the width of a complete string and account for kerning pairs, ligatures, and glyph substitutions between adjacent characters, adjustments that are lost when characters belong to separate chunks. The summed width is close but not exact.

The practical effect depends on the horizontal justification:

  • hjust = 0 (left-aligned): unaffected. The left edge is always anchored at x = 0, so any width discrepancy has no visible impact.
  • hjust = 0.5 (centered): minor. The measurement error is split equally on both sides.
  • hjust = 1 (right-aligned): most visible. The right edge of successive wrapped lines may not align precisely because each line carries a slightly different measurement error.

For best accuracy, prefer left or center alignment. Right alignment may show slight edge misalignment on multi-line text.

This is a known limitation and work is in progress to reduce the gap.

Choosing the right approach

Feature element_md() element_chunks() geom_*_md()
Bold / Italic **text** / *text* as_b() / as_i() **text** / *text*
Inline code `text` x `text`
Superscript x as_sup() x
Subscript x as_sub() x
Colors x colorize() x
Highlighting x as_highlight() x
Use case Theme elements Theme elements Text annotations
  • element_md(), simple markdown in theme elements (titles, captions, axes).
  • element_chunks(), rich formatting with superscripts, subscripts, colors. Uses the same vocabulary as ‘flextable’, making it easy to reuse patterns across plots and tables.
  • geom_text_md() / geom_label_md(), markdown annotations placed at specific coordinates on the plot.
